Carleader 10.1 လက်မယာဉ် BSD မျက်မမြင်အစက်အပြောက်ရှာဖွေတွေ့ရှိမှုစနစ်နှင့်အတူယာဉ်မောင်းလုံခြုံမှုကိုမြှင့်တင်ပါ

2025-05-21

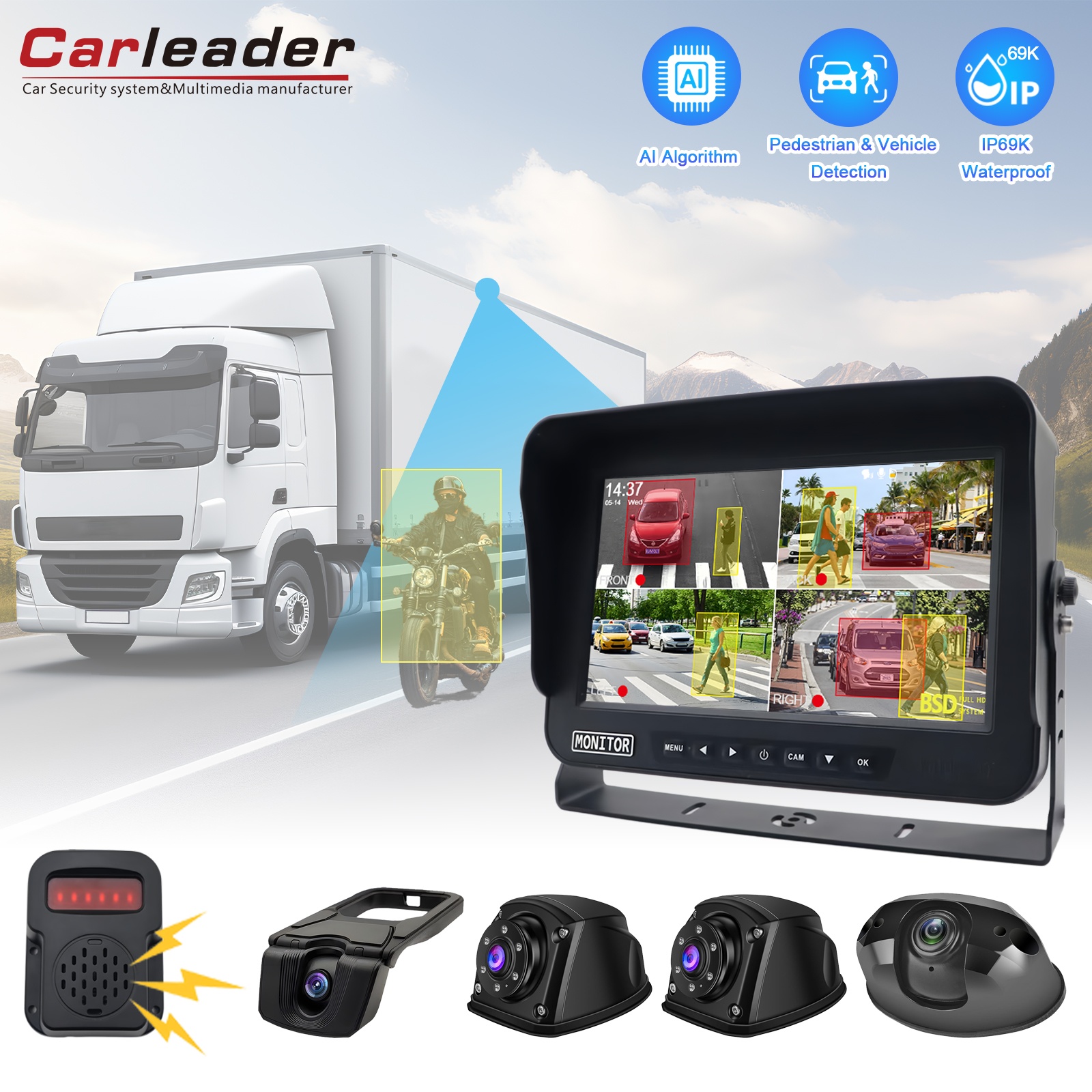

Carleader 10.1 inch Vehicle BSD Blind Spot Detection Monitoring System, designed for trucks, buses, express cars, and special vehicles. Equipped with advanced AI image algorithms and a high-performance chip, this system intelligently detects pedestrians, cyclists, motorcycles, vans, and animals in blind spots, delivering timely alerts to prevent collisions.

Key Features:


Quad HD Monitoring: Four-way high-definition video recording (720P/1080P) with H.264 compression ensures crisp footage.

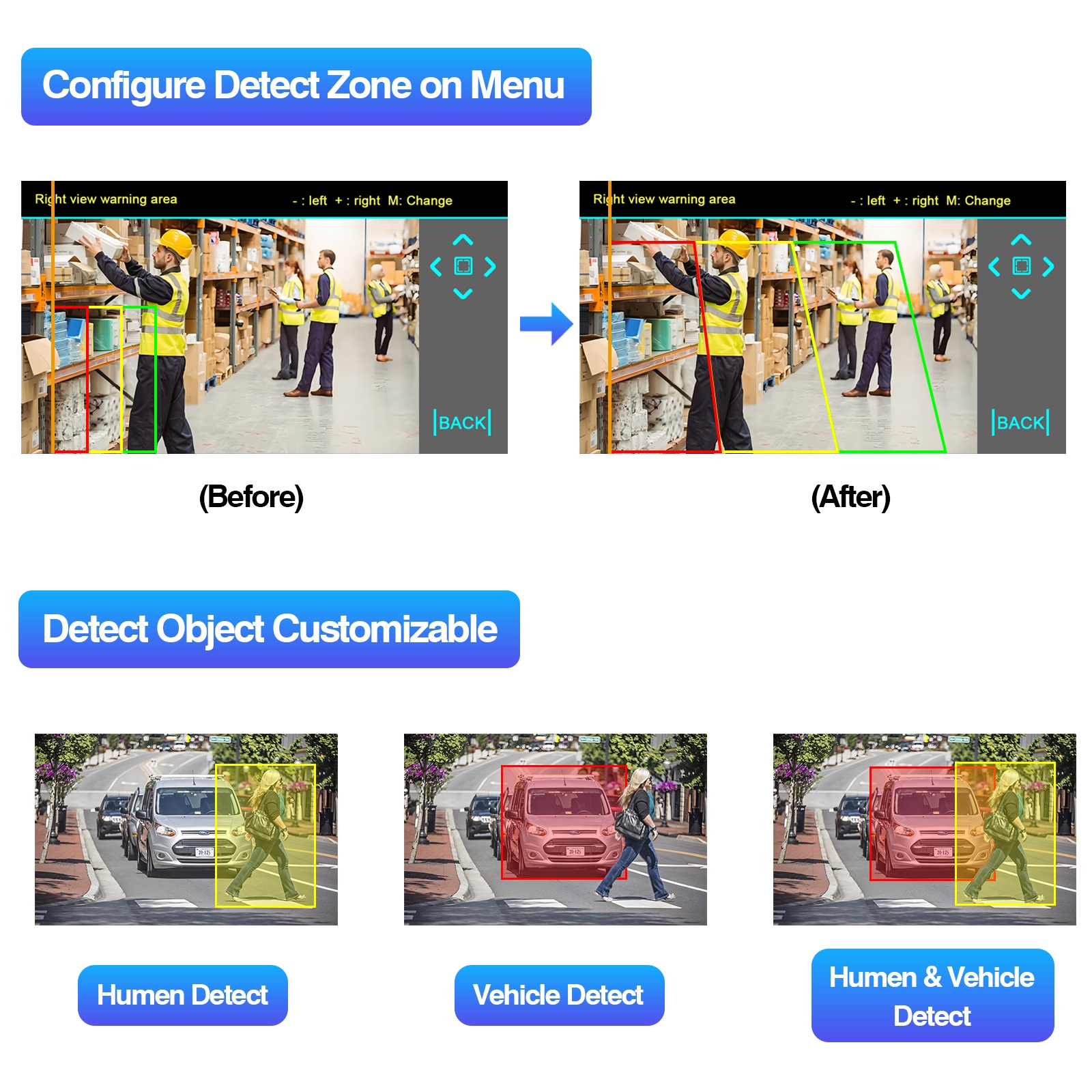

Smart Detection: Real-time warnings for objects entering blind zones, support AI function calibration, adjustable via trapezoidal calibration lines (green for warning areas, blue for vehicle-ground alignment).


Versatile Compatibility: Carleader 10.1 inch Vehicle BSD Blind Spot Detection Monitoring System supports 7/8/10.1-inch screens, DC 12V-36V power input, and operates in extreme temperatures (-20°C to 70°C).


Secure Storage: Support Class 10 SD cards (16GB–128GB) for loop recording and Playback.


User-Friendly Interface: Multi-language support, intuitive remote control, and easy menu navigation for settings like brightness, mirroring, and time/date.


Specification:

ITEM
SPECIFICATION
Screen size
7/9/10.1 Inch AHD Quad Monitor (BSD)
Backlight brightness
LED, brightness: 500cd/m 2500:1
Screen resolution
1024*RGB*600
Language
English/Chinese/Japanese/Russian
System
PAL/NTSC
Power supply

DC 12V-36V (working voltage above 13V with camera)

Output: 11.5V/3A

Operating temperature
-20℃~70℃
Storage temperature
-20℃~70℃
SD card slot
SD high-speed card for video storage, minimum 16GB, maximum 128GB, card speed not less than 10M/S
Support camera resolution
1280x720, 1920×1080
Video resolution
720P (HD 1280x720), 1080P (HD 1920×1080)
Photographic resolution
1280x720, 1920×1080
Storage compression mode
H.264
Video format
.ts
Picture format
.jpg
Connector
4-Pin Aviation Plug
Accessories
Power Cable, Remote Control, Bracket, User Manual


Carleader 10.1 inch Vehicle BSD Blind Spot Detection Monitoring System, ideal for fleet managers or individual drivers, it ensures safer journeys through proactive hazard detection.


Related Product:

CL-S1018BSD-DVR: 10.1 inch Vehicle BSD Blind Spot Detection Monitoring System
